CycloPhaser

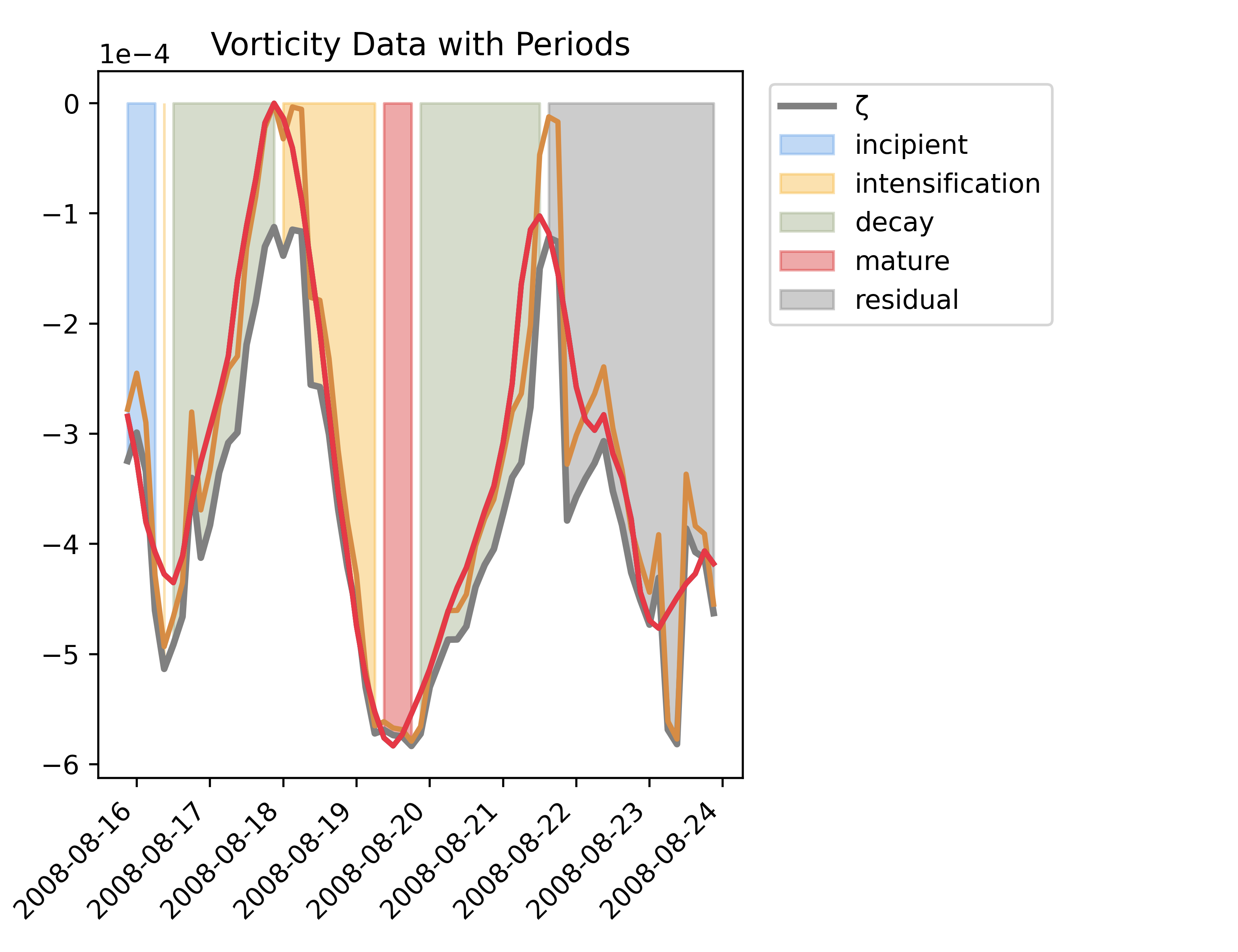

CycloPhaser splits the life cycle of an extratropical cyclone into phases: incipient, intensification, mature, decay and residual. It reads one number per time step, the relative vorticity at the cyclone’s centre, and returns the phase of every time step.
What it needs
A time series of relative vorticity along a cyclone track: one value per time step, taken at the cyclone’s centre as it moves. The package was built and calibrated on 850 hPa relative vorticity along Southern-Hemisphere tracks, where a deeper cyclone has a more negative vorticity.
CycloPhaser does not track cyclones. The series has to come from a tracking algorithm; Walker et al. (2020) review the approaches. Open-source tracking tools, such as CyTRACK (Pérez-Alarcón et al., 2024), and cyclone track databases, such as the Atlantic extratropical cyclone tracks database (Gramcianinov et al., 2020), are publicly available.
Try it without installing
The calibration app runs CycloPhaser on your own tracks in the browser: https://cyclophaser.streamlit.app (see Calibration app).
How to cite
If you use CycloPhaser, please cite:
de Souza, D. C., da Silva Dias, P. L., Gramcianinov, C. B., & de Camargo, R. (2025). CycloPhaser: A Python Package for Detecting Extratropical Cyclone Life Cycles. Journal of Open Source Software, 10(108), 7363. https://doi.org/10.21105/joss.07363
The method was first used in de Souza et al. (2024).
Contents
References
de Souza, D. C., da Silva Dias, P. L., Gramcianinov, C. B., & de Camargo, R. (2025). CycloPhaser: A Python Package for Detecting Extratropical Cyclone Life Cycles. Journal of Open Source Software, 10(108), 7363. https://doi.org/10.21105/joss.07363
de Souza, D. C., da Silva Dias, P. L., Gramcianinov, C. B., da Silva, M. B. L., & de Camargo, R. (2024). New perspectives on South Atlantic storm track through an automatic method for detecting extratropical cyclones’ lifecycle. International Journal of Climatology, 44(10), 3568-3588.
Gramcianinov, C. B., Campos, R. M., de Camargo, R., Hodges, K. I., Guedes Soares, C., & da Silva Dias, P. L. (2020). Atlantic extratropical cyclone tracks in 41 years of ERA5 and CFSR/CFSv2 databases. Mendeley Data, 4, 108111.
Pérez-Alarcón, A., Coll-Hidalgo, P., Trigo, R. M., Nieto, R., & Gimeno, L. (2024). CyTRACK: An open-source and user-friendly Python toolbox for detecting and tracking cyclones. Environmental Modelling & Software, 176, 106027.
Walker, E., Mitchell, D. M., & Seviour, W. J. (2020). The numerous approaches to tracking extratropical cyclones and the challenges they present. Weather, 75(11), 336-341.
